ASTM A403 WP316L Stainless Steel Butt Weld 90° LR Elbow ASME B16.9 Class150

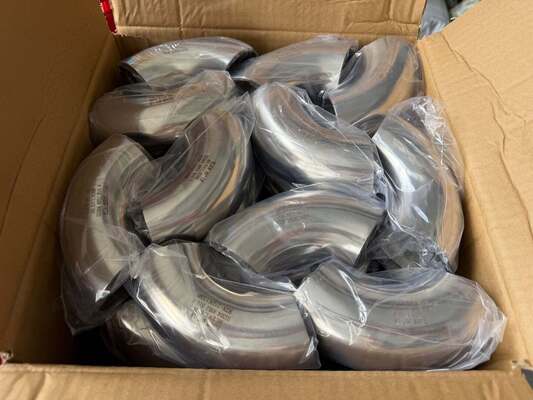

  • ASTM A403 WP316L Stainless Steel Butt Weld 90° LR Elbow ASME B16.9 Class150

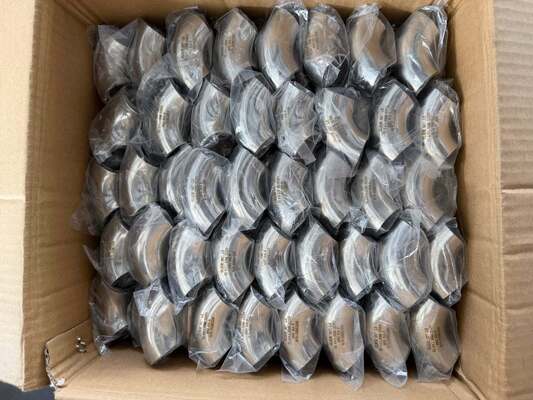

  • ASTM A403 WP316L Stainless Steel Butt Weld 90° LR Elbow ASME B16.9 Class150

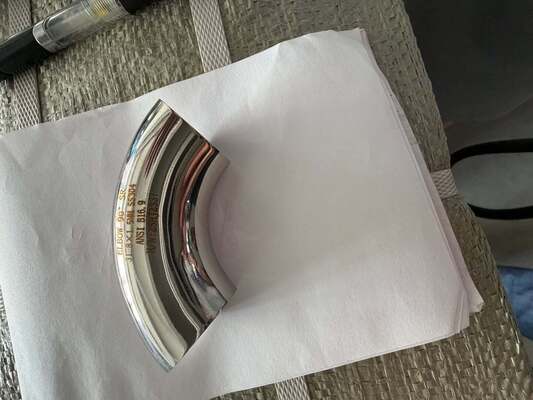

  • ASTM A403 WP316L Stainless Steel Butt Weld 90° LR Elbow ASME B16.9 Class150

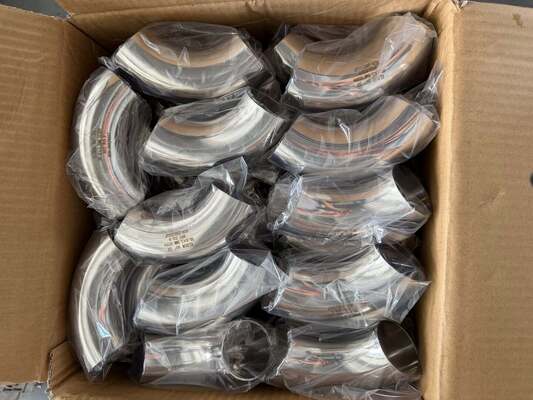

  • ASTM A403 WP316L Stainless Steel Butt Weld 90° LR Elbow ASME B16.9 Class150
  • ASTM A403 WP316L Stainless Steel Butt Weld 90° LR Elbow ASME B16.9 Class150
Lugar de origen Shangai, China
Nombre de la marca TOBO
Certificación ISO/TUV/SGS
Número de modelo Codo de acero inoxidable
Cantidad de orden mínima 1 pieza
Precio Negociable
Detalles de empaquetado Paquete de envío estándar
Tiempo de entrega 15-30 días de trabajo
Condiciones de pago T/T, Unión Occidental
Capacidad de la fuente 10 toneladas/mes
Datos del producto
Nombre del producto Codo ASME B16.9 Class150 de acero inoxidable de la soldadura de extremo del 90° LR de ASTM A403 WP31 Resistencia a la corrosión Alto
Servicio Personalización del producto Técnica Empujando en caliente
Paquete En el caso de los productos fabricados en la Unión, el valor de los productos fabricados en la Unión Técnicas de forja Forja cerrada a presión
Original Porcelana Ángulo 90 grados
Tamaño de la pulgada 5/32~1/2 Nombre del producto Codo de acero inoxidable
Radio largo, corto, R=1.5D, R=1D Refinamiento Anodizado
Embalaje Acordar el requesment del cliente Fábrica Sí
Diámetro Varía (p. ej., 1/2 pulgada, 1 pulgada, 2 pulgadas) Número de acero 1,4901
Deja un mensaje
Descripción de producto

ASTM A403 WP316L Stainless Steel Butt Weld 90° LR Elbow ASME B16.9 Class150



1. Product Description

Stainless Steel Butt Welding Elbow is a steel pipe fitting formed by hot pressing or forging. Its connection method is to directly butt weld the elbow with the steel pipe, creating a permanent, flush connection that enables maximum flow through the process line. The product is made of high-quality stainless steel (grades such as 304, 304L, 316, 316L, etc.), featuring excellent corrosion resistance, oxidation resistance, and high-temperature resistance. The product design complies with standard pipe fitting specifications to ensure seamless integration with same-specification pipelines.



2. Product Applications

This elbow is used to change the direction of piping in various industrial systems. Main applications include:

  • Petrochemical and chemical processing plants – for crude oil, refined products, and chemical feedstocks.

  • Water treatment and environmental protection – drinking water supply, sewage, and seawater desalination.

  • Food, beverage, and pharmaceutical industries – sanitary pipelines for clean media.

  • Power generation – boiler feedwater and steam lines.

  • Oil and gas – production fluids and natural gas transmission.

  • Marine and offshore engineering – seawater cooling and fuel oil systems.

  • Building and municipal engineering – water supply, drainage, heating, and gas distribution.

​

​3. Product Advantages

  • Superior corrosion resistance – 304/316L grades resist pitting, crevice corrosion, and stress corrosion cracking, suitable for harsh environments.

  • High strength and durability – work hardening during forming provides excellent mechanical strength; service life can reach up to 100 years with low maintenance.

  • Leak‑proof permanent connection – butt welding ensures a seamless, reliable joint that eliminates leakage risks.

  • Smooth internal surface – reduces fluid friction, prevents deposit accumulation, and inhibits bacterial growth.

  • Material and energy saving – stamping process produces minimal scrap and requires no extra heating, making it efficient and eco‑friendly.

  • Quick installation – installation time is only one‑third of that for threaded or socket‑welded fittings, shortening construction schedules.

ASTM A403 WP316L Stainless Steel Butt Weld 90° LR Elbow ASME B16.9 Class150 0

4.Key Product Parameters

Parameter Specification
Materials Stainless steel 304, 304L, 316, 316L, and other custom grades
Standards GB/T12459, GB/T13401, ASME B16.9, SH3408, SH3409, HG/T21635, HG/T21631, SY/T0510, GB/T10752-1995, EN10253-2, DIN2605, GOST17375-2001, JIS B2313
Size Range (Seamless) 1/2" – 24" (DN15 – DN600)
Size Range (Welded) 4" – 72" (DN150 – DN1900)
Wall Thickness Schedules SCH5S, SCH10S, SCH10, SCH20, SCH30, SCH40S, STD, SCH40, SCH60, SCH80S, XS, SCH80, SCH100, SCH120, SCH140, SCH160, XXS
Bending Radii Long Radius (LR): R=1.5D; Short Radius (SR): R=1D
Angles 30°, 45°, 60°, 90°, 180°, and custom angles
End Finish Beveled ends for butt welding
Surface Treatment Natural, varnished, pickled, or passivated
Pressure Ratings Approximately 17 classes; STD and XS most common. Max working pressure: 275 psi at 150°F



FAQ

1. Are you trading company or manufacturer ? We are manufacturer ,You can see the certification.

2.How long is your delivery time? Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

3. Do you provide samples ? is it free or extra ? Yes, we could offer the sample for free charge but need pay the cost of freight.

4. What is your terms of payment ? Payment<=1000USD, 100% in advance. Payment>=1000USD, 50% T/T in advance ,balance before shippment.
